Cost Expectations

What a Maytag Washer Control Board Costs, and Why It Is Rarely the Part

Board work on this badge starts from $265 fitted, and the diagnostic that establishes whether you need one is from $89 and credited against it. The more useful part of the answer is that a control board is diagnosed last rather than first. A machine that will not start, will not fill, will not spin or will not drain can be reporting a lid lock, an inlet valve, a drain pump or a wiring connection, and all four of those are considerably cheaper and considerably more likely. Fitting a board to a machine whose lid lock has worn out produces an expensive washer that still does not start. So the order is not caution for its own sake — it is what separates a repair that holds from one that comes back.

Book a diagnostic (305) 853-8839

The full guide

Cost Expectations By Appliance Content Team Last checked 4 minute read

How much is a control board for a maytag washer is a fair question with a straightforward number attached, and a more useful answer sitting behind it.

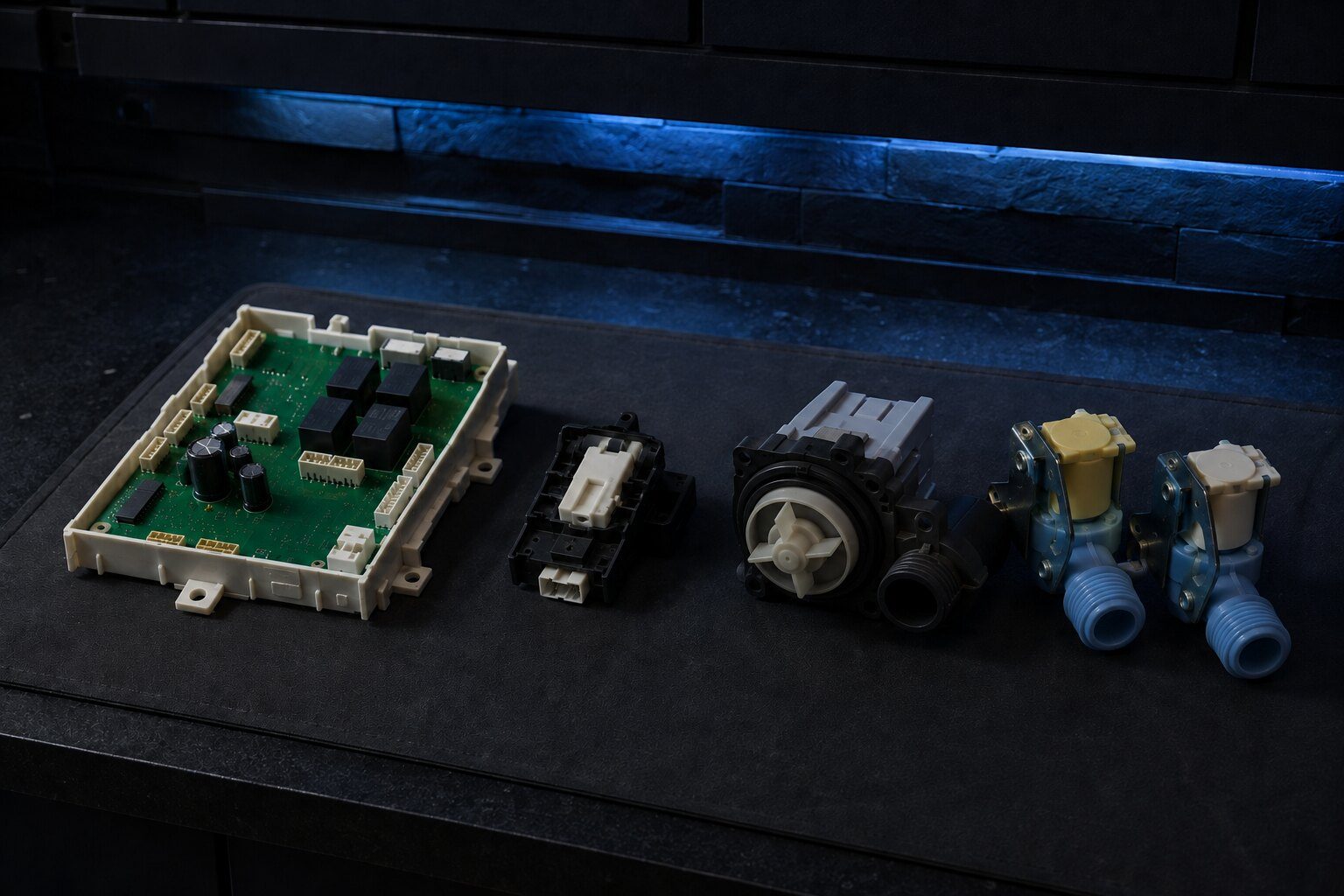

A control board sits between what it reads and what it drives Current travels left to right through three links. First what the board reads: a temperature sensor, a thermostat, a lid or door switch, a pressure sensor. Then the board itself, which decides and switches. Then what the board drives: a heating element, a water valve, a motor, a door lock. A dead output looks identical from the kitchen whichever of the three has given up, which is why a board is blamed for the other two. Three things make a board a reasonable diagnosis: the output stays dead with the load disconnected, it is dead on every cycle that uses it rather than on one program, and the sensor feeding it reads correctly. If none of those has been checked, what has been diagnosed is the symptom rather than the part, and the sensor and the element each cost a fraction of the board while failing more often. THE BOARD IS THE MIDDLE OF THREE. THE KITCHEN CANNOT TELL THEM APART. WHAT IT READS sensor, thermostat, lid or door switch, pressure sensor THE BOARD it decides, then it switches the thing below WHAT IT DRIVES element, valve, motor, door lock, the wiring between One dead oven, one dead pump, one lock that never releases — the same complaint from any of the three. THREE THINGS THAT MAKE A BOARD A REASONABLE ANSWER ONE Still dead with the load disconnected. TWO Dead on every cycle that uses that output. THREE The sensor feeding it reads correctly. None of the three checked? Then the symptom has been diagnosed, not the part. The sensor and the element each cost a fraction of the board, and both give up more often.
Every board is reachable through the parts around it, and those parts are cheaper and fail more often — which is why the middle box is the last one to be condemned, not the first.

How much is a control board for a Maytag washer? The number, first

Board work on this badge starts from $265 fitted, and the diagnostic that establishes whether you need one is from $89 and comes off the repair when you go ahead.

That is the figure. What follows is the part worth reading, because a meaningful proportion of the people who search for it do not need one.

Why the board gets blamed

It is the expensive component people have heard of, and it is the one thing in a washing machine that could plausibly explain any symptom at all.

A machine that will not start, will not fill, stops mid-cycle, will not spin or will not drain could in principle be a control problem. That is exactly why it is a poor first guess: an explanation that covers everything distinguishes nothing.

The board is also invisible. Nobody can look at one and see that it is fine, which makes it a comfortable place to put an unexplained symptom.

The four things that come first

The lid lock or door lock. The cycle will not begin without it reporting closed, and it operates tens of thousands of times over the life of the machine. A worn lock produces a machine that appears completely dead, and it is a fraction of the price.

The inlet valve. A machine that will not fill has five things in front of it — two taps, two hoses, two screens and the valve — before anything electronic is involved.

The drain pump. A cycle that stops with water in the tub is a pump or a blockage long before it is a control.

The wiring and connections. A connector that has corroded in a humid laundry closet gives exactly the intermittent behavior people describe as "the board going". It is also the one that is free to correct once it is found.

Any of those four will produce a symptom that reads as a control problem, and all four are cheaper.

What happens when the order is wrong

A board fitted to a machine whose lid lock has worn out gives you an expensive washer that still will not start.

That is not a hypothetical. It is the single most common way somebody ends up paying twice, and it usually happens because a part was ordered on a description rather than after a measurement.

The order on this page is not caution for its own sake. It is the difference between a repair that holds and one that comes back, and it is why the diagnostic exists as a separate, credited step rather than being folded into a quote.

When a board genuinely is the answer

It happens, and it looks specific rather than vague.

A machine that lights its panel and responds to nothing, with the lock proved and the power proved. A machine that runs a cycle in the wrong order, or skips a stage entirely. A machine that reports a condition which returns immediately after a reset, with the mechanical part behind that condition already tested.

Those are conclusions rather than guesses, and by the time one of them is reached the conversation is about a specific part with a specific price.

Why this climate is hard on electronics

Boards fail from age, heat and moisture, and two of those three are supplied generously here.

A washer in an unconditioned garage spends its summers well above anything the design assumed. A washer in a closed laundry closet behind a louvered door sits in its own humidity for years. Neither of those is a reason to expect trouble, but they are the reason a corroded connector is a real diagnosis on this coast rather than a curiosity.

That is also why the wiring check sits on the list above rather than as a footnote. A connection that has greened over gives intermittent behavior indistinguishable from a control on its way out, and it is the one item on the list that costs nothing to put right once it is found.

And whether it is worth fitting

On a machine that is otherwise sound, yes. A board is a defined repair, the machine has years left, and this is a badge people keep.

Where we would want a wider conversation is on a machine that is already telling you something else — noisy on the spin, walking across the floor, leaking at the tub seal. Fitting a board from $265 to a washer that needs a bearing within the year is a decision worth making deliberately rather than by accident, and we would rather raise it before the part is ordered than explain it afterward.

If it turns out to be a repair

Every job on this site is priced the same way: an on-site diagnostic first, the figure agreed in writing before anybody starts.

  • A green control board lifted out of an appliance and laid on a dark antistatic mat under one low lamp, two ribbon connectors still trailing back into the opening, relays and a large capacitor visible, nothing on the board readable.
    from $265

    Appliance control board repair cost

    What appliance control board repair costs on a Maytag in South Florida, from $265, and what moves that figure up or down. No final price is published anywhere on this site: the exact cost is confirmed on site after the diagnostic and agreed in writing before anything is opened.

    • from $265, and the four things that move it
    • A parts channel as wide as any on this fleet, which holds the floor down
    • Confirmed on site in writing, and we say when a repair is not worth doing
    What moves this figure
  • Looking down into the open tub of a white top-load washer at night: a load of laundry lying loose and completely dry around a tall finned center agitator post, not a drop of water anywhere in the basket.
    The cycle is selected and nothing happens, or the drum stays dry

    Washer will not start or will not fill

    Two complaints that arrive in the same phone call and are cleared in the same order: is the machine getting power, is it getting water, and is it being allowed to begin. A Maytag washer will not start a cycle it cannot complete, so a machine that sits there is often reporting something rather than broken.

    • LF is the machine saying the water took too long to arrive, rather than a verdict on the machine
    • A control that has locked itself out looks exactly like a dead machine
    • A lid or door that will not report closed stops the cycle before it starts
    What it usually means
  • The lid of a white top-load washing machine held raised while the lid lock housing hangs out of its cutout in the cabinet rim on its wiring loom, the short metal striker pin on the underside of the lid directly above it.
    from $139

    Washer lid lock and lid switch repair

    Top-load machines, and a different part in a different place from the front-load door lock — which is why it has a row of its own rather than being averaged into one. A top-loader will not spin unless it is sure the lid is shut, so a failed lock arrives as a machine that washes and leaves everything soaking. On the older cabinets this is a console-off job.

    • A separate part and a separate job from the front-load door lock
    • The commonest reason a top-loader washes and will not spin
    • On older cabinets the console comes off, which is where the time goes
    What this involves
  • A drain pump filter unscrewed out of the bottom front of a washer over a shallow tray, a coin and a hairpin caught in the mesh, water still running. What actually comes out of one of these, which is the sentence the page opens with.
    from $175

    Washer drain pump replacement

    The commonest laundry repair on this make, and one of the cheapest parts behind one of the longer jobs. A machine that stops mid-cycle with a drum of water is usually reporting the pump, the filter in front of it or the hose behind it, and this maker publishes more numbered conditions for washers than for anything else it builds — so there is often something on the panel worth photographing before the power is cut.

    • Photograph the panel first: this is the make's most documented appliance
    • Filter and hose before the pump — and the coin that got there first
    • The standpipe and the sink beside it are checked, because both can defeat the machine
    What this involves

Questions people ask about this

How much is a control board for a maytag washer if I fit it myself?

The part alone is less, and we will not pretend otherwise. What the figure here covers is the diagnosis that establishes you need one, the part, the fitting and a warranty on the work — and the diagnosis is the part most self-fitted boards skip, which is why a proportion of them do not fix anything.

Someone told me it is the board.

Ask what was measured. A board is a legitimate conclusion after the lock, the valve, the pump and the harness have been proved; it is a guess before that, and it is the most expensive guess available.

Is it worth it on an older machine?

It depends on what else is worn. On a machine that is otherwise sound, a board is a defined repair and the machine has years left. On one that is already noisy on the spin, we would want to talk about the bearing in the same conversation rather than fit a board and be back in six months.

Why do boards fail at all?

Age, heat and moisture, mostly, and this climate supplies two of the three generously. A machine in an unconditioned garage or a closed laundry closet is asking more of its electronics than one in an air-conditioned utility room.

Will a power cut damage the board?

Rarely. What a power cut usually does is leave the machine holding PF and refusing to continue, which reads exactly like a dead control and is cleared by a one-minute reset. That is worth trying before anybody prices anything.
